Re: Trike Project

Postby Sebastian Lindau » Sun Mar 25, 2012 5:31 pm

sandaltered wrote:Your fab skills are awesome! You can weld!!! Good job.


Thank you.

Best regards, Sebastian.
Sebastian Lindau

Posts: 133
Joined: Wed Oct 26, 2011 12:17 pm
Location: Switzerland

Re: Trike Project

Postby Sebastian Lindau » Sun Apr 29, 2012 5:50 am

Hi!

The work on the trike is still going on. There are a lot of small things to do in the moment - but nothing that's worth to post some pictures of it. Here a bracket, there a bracket - most of you will know what I'm talking about. I'll let you know if somewhat happened that's a little bit more interesting. So long...

Best regards, Sebastian.
Sebastian Lindau

Posts: 133
Joined: Wed Oct 26, 2011 12:17 pm
Location: Switzerland

Re: Trike Project

Postby Sebastian Lindau » Sun Jun 10, 2012 6:25 pm

Hi!

Today I've made some pic's of the things that happened over the last weeks.

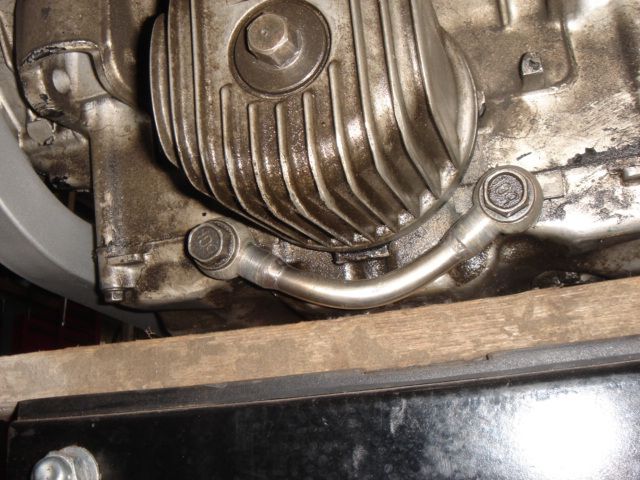

I've removed the oilcooler, and have connected the both openings.

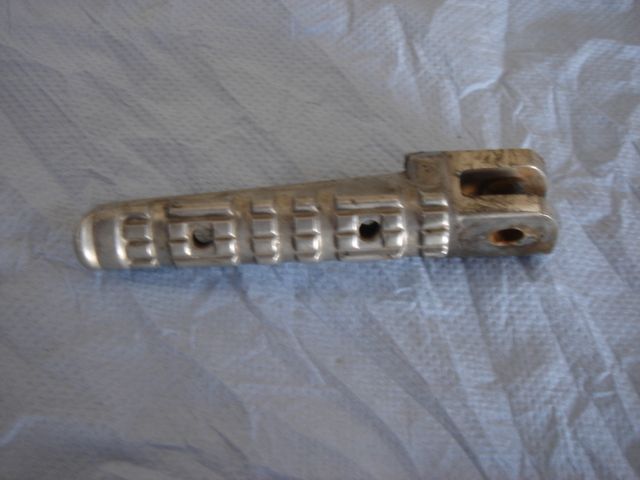

This is the original -folding- footpeg...

...and this are the new -not foldable- (left side).

(right side)

The brackets for the rear brake line...

...and a detail of it.

Then I had to fab a new bracket for the coils, because originally they were mounted outside of the mainframe behind the panel and I don't want to mount the panel again. I like it much better naked.

This is the originally connection for the brake fluid container on the rear end.

I had to fab a new one, because of the new rear frame there is not enough space to go out of the cylinder in the original sharp angle.

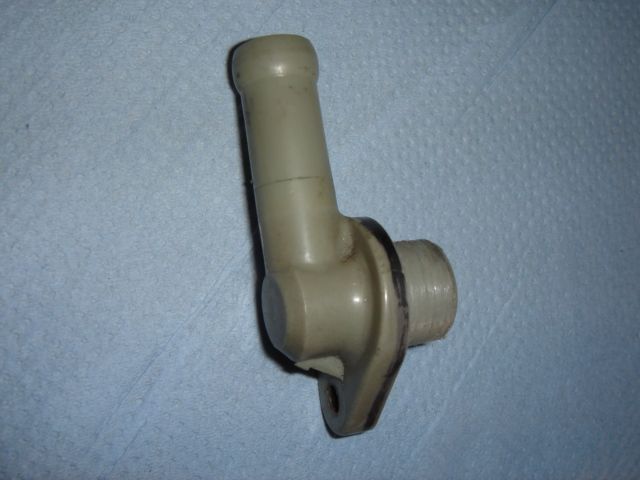

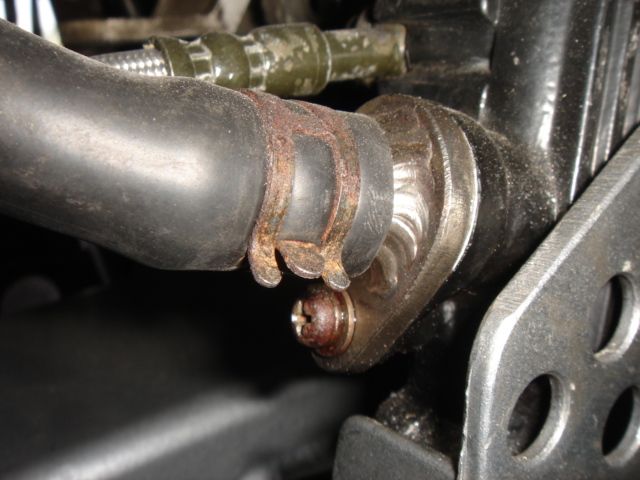

This is the new home for the radiator filler pipe. The reason for this expenditure is the same as for the coils. If you know the FZR you know also, that there's not much space behind the mainframe for all stuff.

The new cooling circuit shown from underneath. (left side)

(right side)

Because of the expected heat from the exhaust, I have cutted out a part of the water hose in this area and replaced it by a piece of aluminum tube.

Because of the better arrangement of the connections I have installed a wattercooler of the FZ 750...

...the only thing I had to change, was the lower brackets. They was too close together. Everything else fits perfect.

This week the airshifter system was delivered.

I've started to mount it and the first things I had to do was to fab a mounting point for the cylinder on the frame...

...and build a new gear lever.

And this is how it looks mounted.

Best regards, Sebastian.
Sebastian Lindau

Posts: 133
Joined: Wed Oct 26, 2011 12:17 pm
Location: Switzerland

Re: Trike Project

Postby Sebastian Lindau » Sun Jul 29, 2012 6:56 am

Hi!

Yesterday I had finished the new fuel cell. The breather valve is still missing - I'm waiting for this since three weeks now.


And this is how it looks mounted. As you can see, I have decided to use the originally rear frame because for the other one (shown a few posts earlier) would be a new panel necessary. In the meantime I had made some experiments with fiberblass and I recognized that this stuff is not made for me. Maybe later I give it a new try...


Best regards, Sebastian.
Sebastian Lindau

Posts: 133
Joined: Wed Oct 26, 2011 12:17 pm
Location: Switzerland

Re: Trike Project

Postby JonJ » Sun Jul 29, 2012 9:25 am

Nice Work!
User avatar
JonJ

Posts: 377
Joined: Thu Oct 02, 2008 6:14 am

Re: Trike Project

Postby Sebastian Lindau » Wed Aug 22, 2012 5:14 am

Hi!

Knows anyone a good chain that I can use for my trike? Recommendations are welcome. Thanks!

Best regards, Sebastian.
Sebastian Lindau

Posts: 133
Joined: Wed Oct 26, 2011 12:17 pm
Location: Switzerland

Re: Trike Project

Postby Sebastian Lindau » Sun Oct 21, 2012 12:07 pm

Hi!

In the past few weeks I've fabricated a new fairing for the front:
In the inside is still some work to do:
Killswitch:
In these two plastic boxes is the electrical system housed. The lower one is for the air shifter and the upper one for everything other. Everything is connected with plugs. In case of maintenance or repair it offers the possibility to remove all the wires very fast:
The air shifter bottle has also find its place:

Best regards, Sebastian.
Sebastian Lindau

Posts: 133
Joined: Wed Oct 26, 2011 12:17 pm
Location: Switzerland

Re: Trike Project

Postby Sebastian Lindau » Wed Nov 07, 2012 4:00 pm

Hi!

Chainguard and support roll are done. Pics below:


Best regards, Sebastian.
Sebastian Lindau

Posts: 133
Joined: Wed Oct 26, 2011 12:17 pm
Location: Switzerland

Re: Trike Project

Postby sandaltered » Wed Nov 07, 2012 6:22 pm

I always like to see your progress. Your work is very clean! Nice job.
Sand, Mud, and ATV Drag Racing Performance Parts
Mike@MKEMotorsports.com
937-243-6791
User avatar
sandaltered
Site Admin

Posts: 2647
Joined: Thu Jul 24, 2008 10:16 pm
Location: Marysville, OH

Re: Trike Project

Postby Sebastian Lindau » Wed Nov 28, 2012 6:55 am

Hi!

Everytime I've looked at the "number-plate-solution" at the front end, I was not 100% satisfied. It was ok, but not that what I really wanted. So I've decided to fab a complete new fairing. Well, I think it was worth all the work. Now I'm satisfied:


Now I just have to find someone, who can built me that of Fiberglass.

Best regards, Sebastian.
Sebastian Lindau

Posts: 133
Joined: Wed Oct 26, 2011 12:17 pm
Location: Switzerland
